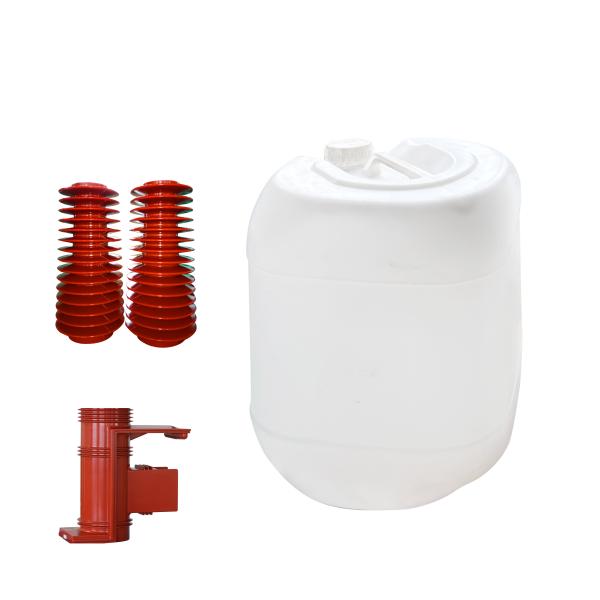

High Chemical Resistance Liquid Epoxy Resin & Hardener For
Electrical Insulation
Liquid Epoxy Resin And Hardener Cas Number 1675 54 3 Electrical
Insulation with Casting Process
Product TDS:
Liquid epoxy resin and hardener can be used for electrical
insulation with casting processes. Here are some features and
benefits of using liquid epoxy resin and hardener for electrical
insulation with casting:
Electrical Insulation: Liquid epoxy resin and hardener are
excellent electrical insulators. They can help to prevent
electrical current from flowing through the insulation, reducing
the risk of electrical breakdown or short circuits.
Chemical Resistance: Epoxy resin is highly resistant to chemicals
and moisture. This makes it a good choice for insulation in harsh
environments, where exposure to chemicals or moisture could cause
damage or corrosion.
Adhesion: Liquid epoxy resin and hardener can adhere well to a
variety of surfaces, including metals, plastics, and composites.
This makes them a good choice for use in casting processes, where
the resin needs to bond to the surface of the mold or other
components.
Curing Time: Epoxy resin and hardener can be formulated to have a
range of curing times, ranging from a few minutes to several hours.
This can allow for flexibility in the casting process, depending on
the specific requirements of the application.
Versatility: Epoxy resin and hardener can be formulated to meet
specific performance requirements, such as low viscosity, high
filler loading, or high thermal stability. This makes them a
versatile material that can be customized to meet the needs of
different applications.
Overall, liquid epoxy resin and hardener can be an effective and
reliable material for electrical insulation with casting processes.
Its combination of electrical insulation, chemical resistance,
adhesion, curing time, and versatility make it a popular choice for
transformer manufacturers and other electrical equipment
manufacturers.
JT 8880A Epoxy Resin 100 pbw
JT 8880B Epoxy Hardener 80 pbw
Our Packing:
25kg/pail; 220kg/pail;1200kg/pail
PHYSICAL AND CHEMICAL PROPERTIES
| -Appearance | |
| a. Appearance | Liquid(Viscous liquid) |
| b. Color | Transparent |
| Odor | Not data available |
| -Odor threshold | Not data available |
| -PH | 7 |
| -Melting point/Freezing point | unapplied (liquid in room temperature) |
| -Initial Boiling Point/Boiling Ranges | > 200 ℃ |
| -Flash point | > 180 ℃ |
| -Evaporation rate | Not data available |
| -Flammability(solid, gas) | Not data available |
| -Upper/Lower Flammability or explosive limits | Not data available |
| -Vapour pressure | < 0.01Pa (at 20℃) |
| -Solubility | about 0.009 kg/㎥ (at 23℃) |
| -Vapour density | Not data available |
| -Specific gravity(Relative density) | ~1.15g/cm3 |
| -Autoignition temperature | Not data available |
| -Decomposition temperature | Not available |
| -Viscosity | 3000~8000 mPa.s(at 25℃) |
