Kcj Series of Static Mixing Vacuum Pressure Casting Plant

Ask Lasest Price
Brand Name :	JT-RESIN
Model Number :	888
Certification :	SGS，CE,UL
Price :	consult
Payment Terms :	T/T, Western Union, MoneyGram, D/P
Supply Ability :	100pcs/month
Delivery Time :	5 days

Add to Cart

Product Details
Company Profile

Kcj Series of Static Mixing Vacuum Pressure Casting Plant

Basic Info.

Model NO.

KCJ

Agitator Model

Ribbon Agitator

Tower Reactor Type

Spray Tower Reactor

Heating

Outside (Inside) Coil Heating

Heat Transfer Structure

Combined

Automatic Grade

Automatic

Condition

New

Turn-Key Projects

One-Step Service

Standard

KCB Series Standard

Product Name

Vacuum Casting Equipment

Pouring Pot Size

2200X3000

Mixing Bowl

300L

Application Area

Transport Package

Wooden

Specification

900*900*900

Trademark

Origin

China

HS Code

8514300090

Production Capacity

60000PCS/Year

Product Description

Main technical characteristics
1,Device vacuum casting system, vacuum mixing system, electric heating systems, refrigeration systems, an independent vacuum system, pressure systems, measuring systems.
2,Uses the latest static mixing, mixing tank.
3,And condensate filter is our independent research and development of double filtration filters effectively protect the vacuum pump.
4,Pouring cans of clean, energy-efficient heating systems, mixing bowl steady heat conduction oil heating system is adopted.
5,Touch screen +PLC Control, automatic.
6,Vacuum systems to mixing bowl, pouring cans, independence air and high efficiency.
7,The pouring pot is pressurized, pressure system, make the product more
stable and reliable.
8 ,Precision metering pumps, metering system used for measurement.

Technical parameters Kcj Series of Static Mixing Vacuum Pressure Casting Plant

Kcj Series of Static Mixing Vacuum Pressure Casting Plant

NO.	Model	Pouring pot size mm	Mixing bowl	Vacuum unit(a)	Vacuum unit(a)	Working pressure	Measurement	Control mode
1	KCJ-300-2400	2400X3000	2X300L	SV300B/ZJY-300	SV300B	Pnsttve gressure	Static mixing	Touch screen
2	KCJ-400-2400	2400X3000	2X400L	SV300B/ZJY-300	SV300B	Posiive pressure	Static mixing	Touch screen
3	KCJ-400-2600	2600X3000	2X400L	SV300B/ZJY-300	SV300B	Posiive pressure	Static mixing	Touch screen
4	KCJ-400-3000	2000X3500	2X400L	2XSV300B/ZJY-300	SV300B	Posiive pressure	Static mixing	Touch screen
5	KCJ-400-3200	3200X4000	2X400L	2XSV300B/ZJY-600	SV300B	Positive pressure	etatic mixing	Touch screen

Product Decription:

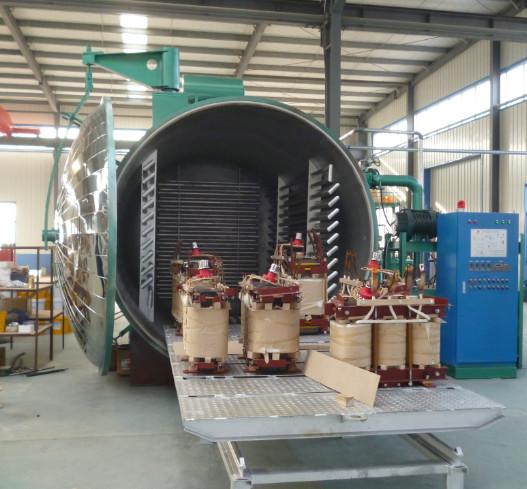

KC Series of epoxy resin vacuum casting equipment is mainly used for dry-type transformers, dry-type casing, dry-type current transformers, dry-type transformers, high-voltage switch insulation, arc and other electrical products of epoxy resin
casting production.
1 ,This series equipment used in electrical products with fillers and pouring;
2 ,This series equipment is suitable A Epoxy resins, UV-outdoor-type epoxy resin and polyurethane vacuum degassing, a combination of polymer materials and casting, for both foreign and domestic production of resin used.
3 ,This series of products can be used for user-filled hybrid and two-component mixed fillers, with great flexibility.
4 ,This series based on user demand, to increase or decrease the equipment
system, modular Assembly option. Easy to install a high degree of automation and easy to master.
KC Series casting equipment are:
KCB Series standard vacuum casting equipment
KCY Series of standard vacuum pressure casting equipment
KCD Series of electronic measurement of vacuum pressure casting plant
KCJ Series of static mixing vacuum pressure casting plant
My Company:
is a high-tech private enterprise, it has a experienced term, which more than ten years engaged in research and development, design, manufacture and installation of vacuum equipment. Besides, it is not only committed to build high quality brand about vacuum equipment, but it also has prodcuts, which are widely used in impregnating, epoxy resin pouring, drying, and note oil processing in some industries(like metal heat treatment, transformer, and transformer device, reactor device, reg- ulator device, high pressure electrical, motor, capacitor, switch and other similar industries).
Relying on strong technical advantages and scale advantages, and it also dedicated itslef to develop Vacuum application technology and relative vacuum equipment Main products are differnent kinds of vacuum casting equipments, vacuum drying equipment, vacuum impregnation equipment, vacuum oiling device equipment, and vacuum heat treatment equipment.
The most important of this company is product qualitu, and it strictly follows international quality certification system, implmentcation od quality poliy about'creating a Kerry brands, buliding first-class equipment, following innovation for development, and being in accordance with customer service.It also provides the best solution, higher quality products and more valuable and efficient after-sales service for
new and old customers.
