Liquid Electrical Insulator Impregnation Epoxy , Low Viscosity Epoxy Casting Resin

Ask Lasest Price
Brand Name :	JT-RESIN
Model Number :	8860
Certification :	SGS，CE,UL
Price :	$3/kg
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	200Ton/week
Delivery Time :	5 days

Add to Cart

Product Details
Company Profile

Liquid Electrical Insulator Impregnation Epoxy , Low Viscosity Epoxy Casting Resin

Epoxy Impregnating Resin System with out vacuum for Electrical Insulation of Air Reactors

Proportion:

JT JT 8860A Epoxy Resin 100 pbw

JT JT 8860B Epoxy Hardener 100 pbw

purpose:

JT 8860A/JT 8860B are recommended for manufacturing electrical composite materials (pipes, rods, etc.) and impregnating high-voltage bushings, coils, etc.

Liquid Electrical Insulator Impregnation Epoxy , Low Viscosity Epoxy Casting Resin

Applications:

For medium and high voltage indoor transformer,electrical insulators, such as switches and electrical parts, etc

Processing methods:

Conventional vacuum self gravity casting

Product data(Guideline values) *

JT 8068-1 A Liquid and Solvent free modified epoxy resin

TYPICAL VALUES*

Viscosity @ 25 ℃, mPa.s [ISO 12058] .................................................................. 1,500-3,000

Epoxy value, equiv/g [ISO 3001] .............................................................................0.45-0.51

Density @ 25℃ , g/cm³ [ISO 1675] ........................................................................1.13--1.15

Vapor pressure @20°C, pa (knudsen) ...........................................................................<0.01

@60°C, pa(knudsen) ..............................................................................<0.5

Storage life @ 25℃ (sealed container), month ……………………………………………………………..12

Remark:In order to prevent the absorption of moisture,please keep epoxy resin in sealed container and storage under normal temperature (about 20 to 25℃).

JT 8068-1 B Modified liquid Epoxy hardener

TYPICAL VALUES*

Viscosity @ 25℃, mPa.s [ISO 12058] ............................................................................50-80

Vapour Pressure @ 20℃, mbar( Knudsen)....................................................................Ca.0.5

@ 60℃,mbar(Knudsen) .....................................................................Ca.10

Density @ 25℃ , g/cm³ [ISO 1675] .........................................................................1.19-1.22

Storage life @ 25℃ (sealed container), month …………………………………………………………….12

Remark:It may be crystallized when stored at low temperature place. After heating to 60℃, crystal can

be eliminated; JT8068-1B contains accelerator. Prolonged storage at high embient temperatures will result in an undesirable increase in its viscosity and impairs the reactivity of casting resin system.

Process viscosity:

Application device:

Application area:

Liquid Electrical Insulator Impregnation Epoxy , Low Viscosity Epoxy Casting Resin

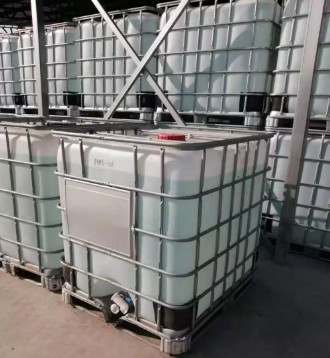

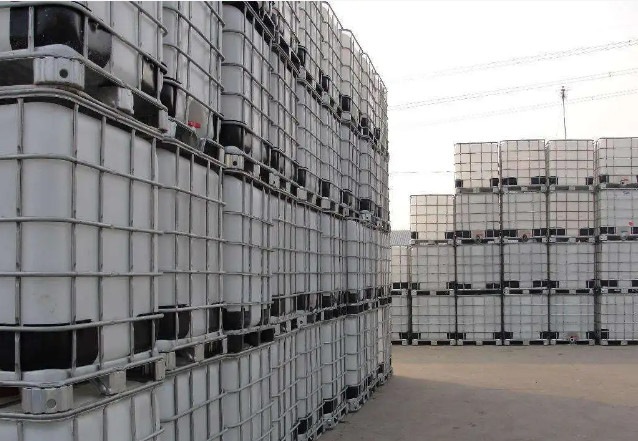

My Warehouse:

FQA:

1	What’s the Pre-filled?
	Pre-filled is the resin or hardener has been filled with silica sands before delivering to you.
2	Is Pre-filled resin cheaper than Pure resin?
	Generally it is. However, you should consider the final cost. If you can find qualified silica sands in you local market, the pure resin is better choice. Silica sands are very cheap, sea freight cost is high. With same quantity of resin in a shipment, you can get more final mixed resin with local silica sands.
3	Why JiangTe resin doesn’t offer Flexibilizer and Accelerator?
	We’ve added them into resin/hardener already before delivering to you. So you can use our materials easily.
4	Should I tell you our process when purchasing?
	Yes, our materials have two kinds on most of items: Vacuum Casting and Auto Pressure Gelation (APG).
5	Do you have one material which is suitable for both CT PT and bushings insulators?
	No, the requirements of CT PT and bushings insulators on electrical characters are different. We’ll help you find the suitable one.
6	We’re using Huntsman epoxy resin, can I use JiangTe resin?
	Yes, ours are equivalent to Huntsman. Please tell the number of Huntsman you’re using, we’ll offer the one matching.
7	What’s the pot life?
	Pre-filled resin is one year; Pure resin is 2-3 years.
8	What's the packing?
	Pre-filled resin is in 25kg drums; Pure resin is in 225kg drums; We also have 5kg drums, IBC tanks and etc.
9	We’re just starting producing. Can you help us on the process?
	No problem, we’ll offer guidance and support. We have thousands of customer manufacturers in China and overseas. So we have good experiences.
