Polyester Film Transformer Raw Material Roll For Electrical Insulation

Ask Lasest Price
Brand Name :	JT
Model Number :	JT000
Certification :	ISO.CE.UL
Price :	negotiable
Supply Ability :	20 tons/ week

Add to Cart

Product Details
Company Profile

Polyester Film Transformer Raw Material Roll For Electrical Insulation

6630A polyester film and polyester fiber for Electrical Insulation 300KV oil transformer

PRODUCT DESCRITION:

6630A polyester film, polyester fiber, non-woven fabric, soft and compliant material

Polyester Film Transformer Raw Material Roll For Electrical Insulation

Various sizes for option:

Technical Data
No.	Item	Unit	Normal value
1	Nominal thickness	mm	0.15	0.17	0.20	0.25	0.32	0.37
2	Nominal weight and tolerance	g/m2	140±20	190±28	225±33	300±45	350±52	425±63
3	Nominal thickness of film	um	50	75	100	150	190	250
4	Tensile Stength MD no bending MD after bending TD no bending TD after bending	N/10mm	≥80 ≥80 ≥80 ≥70	≥120 ≥105 ≥105 ≥120	≥140 ≥120 ≥120 ≥100	≥190 ≥170 ≥150 ≥130	≥270 ≥200 ≥200 ≥150	≥320 ≥300 ≥300 ≥200
5	Elongation MD no bending MD after bending TD no bending TD after bending	%	≥15 ≥10 ≥20 ≥10	≥15 ≥10 ≥20 ≥10	≥15 ≥10 ≥20 ≥10	≥15 ≥10 ≥15 ≥10	≥5 ≥5	≥5 ≥5
6	Breakdown voltage Normal	KV	≥6	≥7	≥9	≥12	≥15	≥18
7	Bonding strength at room temperature	-	No delamination
8	(155±2)ºC10 Bonding strength at 155±2ºC for 10 min	-	No dlamination,blister and drainage

Polyester Film Transformer Raw Material Roll For Electrical Insulation

Hubei plant and Guangdong plant:

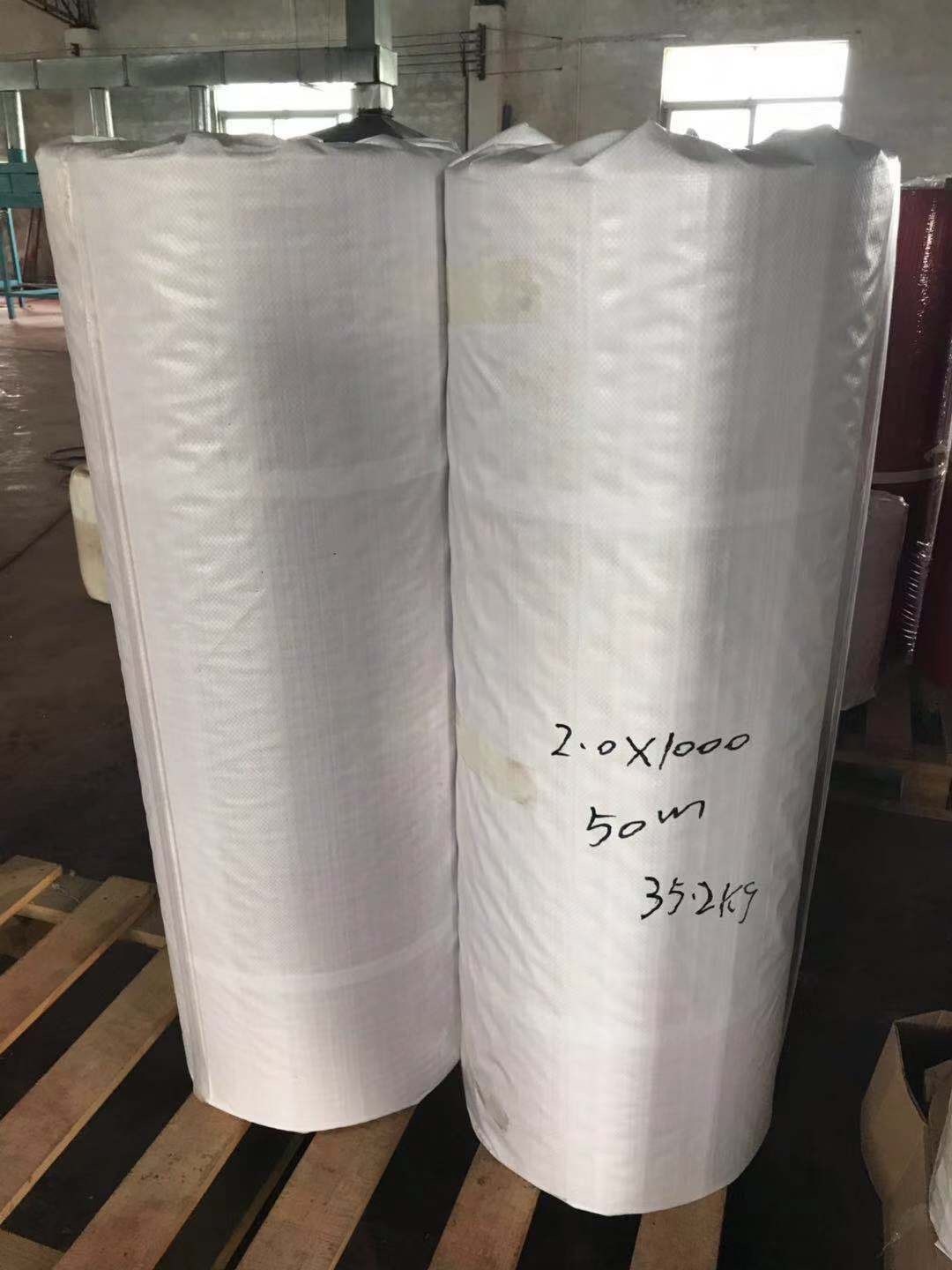

Packing hoto:

ISO certificate:

Polyester Film Transformer Raw Material Roll For Electrical Insulation

FAQ:

1. Are you factory or trading company?

We are factory, and we have two factories in China, one is in Hubei province, another is in Guangdong province, and we also have a trading company in Guangzhou city, welcome to visit us.

2. What is the price of your DMD?

Pls let us know the exact size that your want so that we can offer you the best price

3. What payment terms can you accept?

Our terms of payment is T/T and L/C at sight
