White Transformer Raw Material Fiberglass Mesh Cloth For Electrical Insulation Bushing

Ask Lasest Price
Brand Name :	JT
Model Number :	JT-05
Certification :	ISO.CE.UL
Price :	negotiable
Supply Ability :	20 tons/ week

Add to Cart

Product Details
Company Profile

White Transformer Raw Material Fiberglass Mesh Cloth For Electrical Insulation Bushing

Manufacture need F-grade indoor epoxy resinmaterial of DMD for Electrical Insulation Bushing

DMD FOR TRANSFORMERS:

Strong adhesion Characteristics

Good insulation

Good process performance

Good surface gloss and electrical resistance

Excellent moisture resistance

PRODUCT DESCRITION:

DMD is used for transformers

White Transformer Raw Material Fiberglass Mesh Cloth For Electrical Insulation Bushing

Various sizes for option:

Technical Data
No.	Item	Unit	Normal value
1	Nominal thickness	mm	0.15	0.17	0.20	0.25	0.32	0.37
2	Nominal weight and tolerance	g/m2	140±20	190±28	225±33	300±45	350±52	425±63
3	Nominal thickness of film	um	50	75	100	150	190	250
4	Tensile Stength MD no bending MD after bending TD no bending TD after bending	N/10mm	≥80 ≥80 ≥80 ≥70	≥120 ≥105 ≥105 ≥120	≥140 ≥120 ≥120 ≥100	≥190 ≥170 ≥150 ≥130	≥270 ≥200 ≥200 ≥150	≥320 ≥300 ≥300 ≥200
5	Elongation MD no bending MD after bending TD no bending TD after bending	%	≥15 ≥10 ≥20 ≥10	≥15 ≥10 ≥20 ≥10	≥15 ≥10 ≥20 ≥10	≥15 ≥10 ≥15 ≥10	≥5 ≥5	≥5 ≥5
6	Breakdown voltage Normal	KV	≥6	≥7	≥9	≥12	≥15	≥18
7	Bonding strength at room temperature	-	No delamination
8	(155±2)ºC10 Bonding strength at 155±2ºC for 10 min	-	No dlamination,blister and drainage

White Transformer Raw Material Fiberglass Mesh Cloth For Electrical Insulation Bushing

Hubei plant and Guangdong plant:

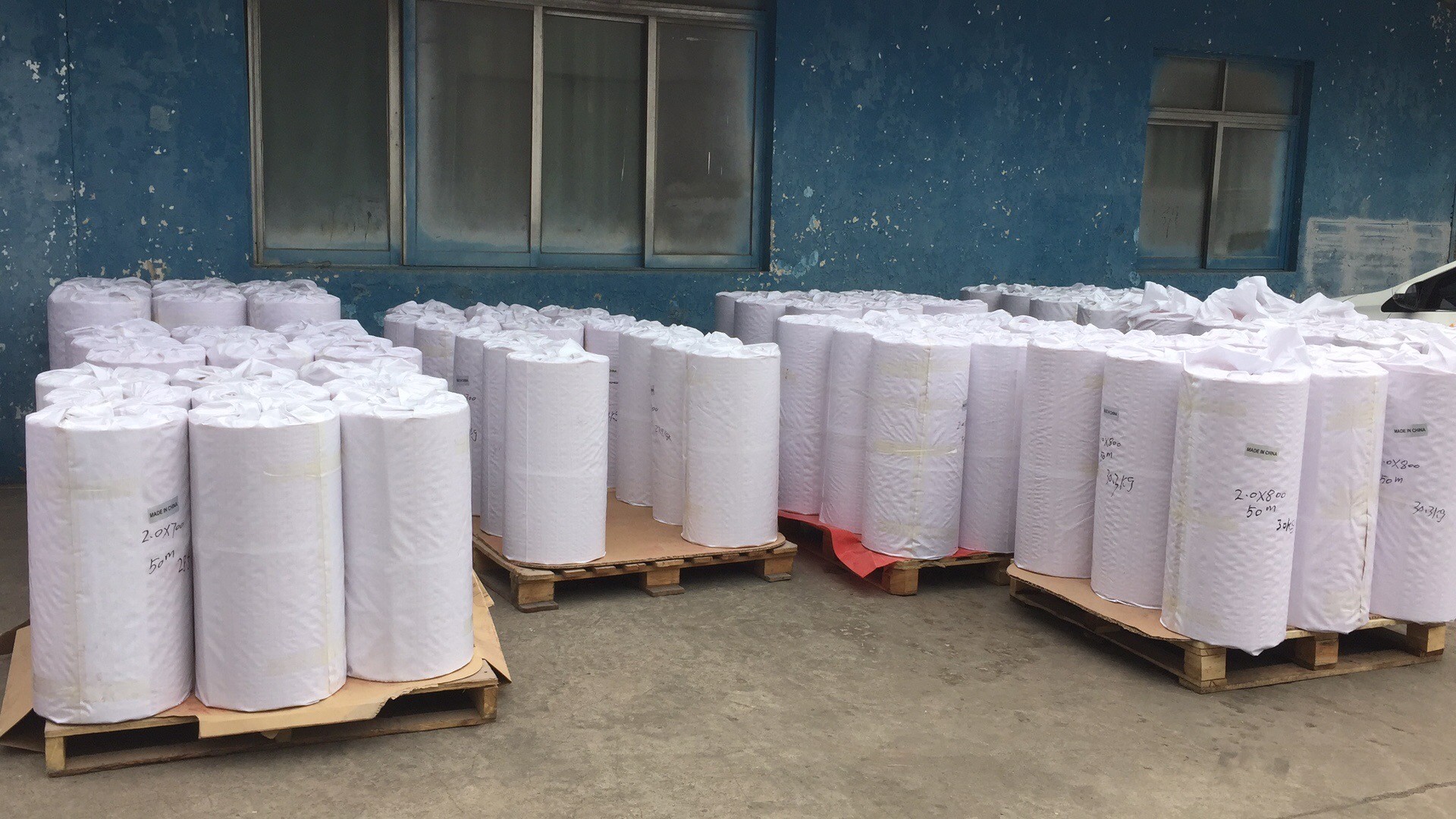

Packing hoto:

ISO certificate:

White Transformer Raw Material Fiberglass Mesh Cloth For Electrical Insulation Bushing

FAQ:

1. Are you factory or trading company?

We are factory, and we have two factories in China, one is in Hubei province, another is in Guangdong province, and we also have a trading company in Guangzhou city, welcome to visit us.

2. What is the price of your DMD?

Pls let us know the exact size that your want so that we can offer you the best price

3. What payment terms can you accept?

Our terms of payment is T/T and L/C at sight
