APG Process with Machine and APG mouls to Producing for Electrical Bushings

Ask Lasest Price
Brand Name :	JT-RESIN
Model Number :	888
Certification :	SGS，CE,UL
Price :	consult
Payment Terms :	T/T, Western Union, MoneyGram, D/P
Supply Ability :	100pcs/month
Delivery Time :	5 days

Add to Cart

Product Details
Company Profile

APG Process with Machine and APG mouls to Producing for Electrical Bushings

Product Description

Stabdard APG Clamping Machine HAPG-860/880/1000/1200

Machine Technical Parameters

Model no	HAPG-860-2
clamp plate size	600X800mm
clamp force	22T
Min Max clamp plate strok	250X1550mm
Upper &lower core puller stroke	800X400mm
Heating power	32KW
ydraulic power pack	7.5KW
Horizontal tilting angle	0-5
mould load weight	2T
Machine weight	8800KG
Machine dimension	7500x1450X3600mm

Model No.	HAPG-880	HAPG-810	HAPG-1000	HAPG-1200
Clamp plate sise	800x800mm	1 000x800mm	1 000x 1 000mm	1200x 1 000mm
Clamp force	220KN	250KN	250KN	250KN
Min Max clamp plate stroke	240x 1 500mm	240x 1 550mm	250x 1600mm	250x 1600mm
Upper&lower core puller stroke	800x400mm	800x400mm	900x450mm	1 000x450mm
Heating power	32KW	32KW	36KW	36KW
Hydraulic power pack	7.5KW	7.5KW	7.5KW	7.5KW
ilt angle: vertically and Horizontally	0-7	0-7	0-7	0-7
Mould load weight	3T	4T	4T	5T
Machine weight	7500KG	7800KG	8500KG	9200KG
Machine dimension	5100xl400x3700mm	5100x1400x3700mm	5100x1400x3700mm	5100Kl400x3700mm

Product Description

Injection trolley and mixing with APG machine APG Process with Machine and APG mouls to Producing for Electrical Bushings

Ithasbeen nineteen ye arsold and hasbeen developing into DMC after continuous development. S hydraulic press, epoxy resin pressure gel forming machine, full automatic Epoxy Static system and metal extrusion hydraulic press and other equipment, and can design and manufacture various kinds of special equipment according to the needs of high-voltage electrical appliances users.
APG Process with Machine and APG mouls to Producing for Electrical Bushings

Basic Info.

Model NO.

B999

Insulating Medium

Epoxy Resin

Installation

Active Type

Magnetic Circuit Structure

Combined Type

Voltage Transformation Principle

Photoelectric Type

Clamp Plate Size

1000X1000mm

Clamp Force

22t

Min Max Clamp Plate Strok

250X1650mm

900X400mm

Heating Power

36kw

Transport Package

Wooden

Specification

900*900*900

Trademark

Origin

China

HS Code

8514300090

Production Capacity

60000PCS/Year

Product Description

Injection trolley and mixing with APG machine
APG Process with Machine and APG mouls to Producing for Electrical Bushings

Product Description

Standard APG clamping machine.

This series belongs to standard APG clamping machine, the min clamp plate size is 600*800mm, and the max clam plate size is 1200*1000mm, can meet production requirement from 11-36KV, such as current transformer, voltage transformer, insulator, bushing, spout, SF6 gas-insulated indoor switch disconnector, Etc.
The upper and lower core distance can be customized , foundation pit is necessary if lower core travel distance above 500mm.

*Servo HMI APG Clamping Machine

*Application

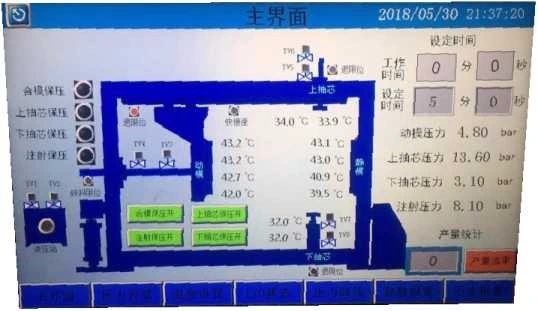

This machine is full automatic,Servo and PCL touch screen control. Machine, the clamp plate size can customized, greatly improved efficiency and product quality. Advantages:
1. Servo motor control
2. PLC touch screen Control
3. Can save more than 100 product datas.
4. Fully automatic design
Auto start machine&heating clamp plate
Auto setting hydraulic pressure
Auto setting heating temperature
Auto setting valve flow

*Machine Technical Parameters


Clamp Plate Size	1000*1200mm
Clamp Force	24T
Min MAX Clamp Plate Stroke	240*1250mm
Upper&Lower Core Puller Stroke	760*350mm
Heating power	24KW
Hydraulic power pack	7.5KW
Horizontal tilting angle	0-5°
Mould load weight	2T
Machine weight	5300KG
Machine dimension	340016003100mm

Detailed Images

Packing & Delivery APG Process with Machine and APG mouls to Producing for Electrical Bushings
